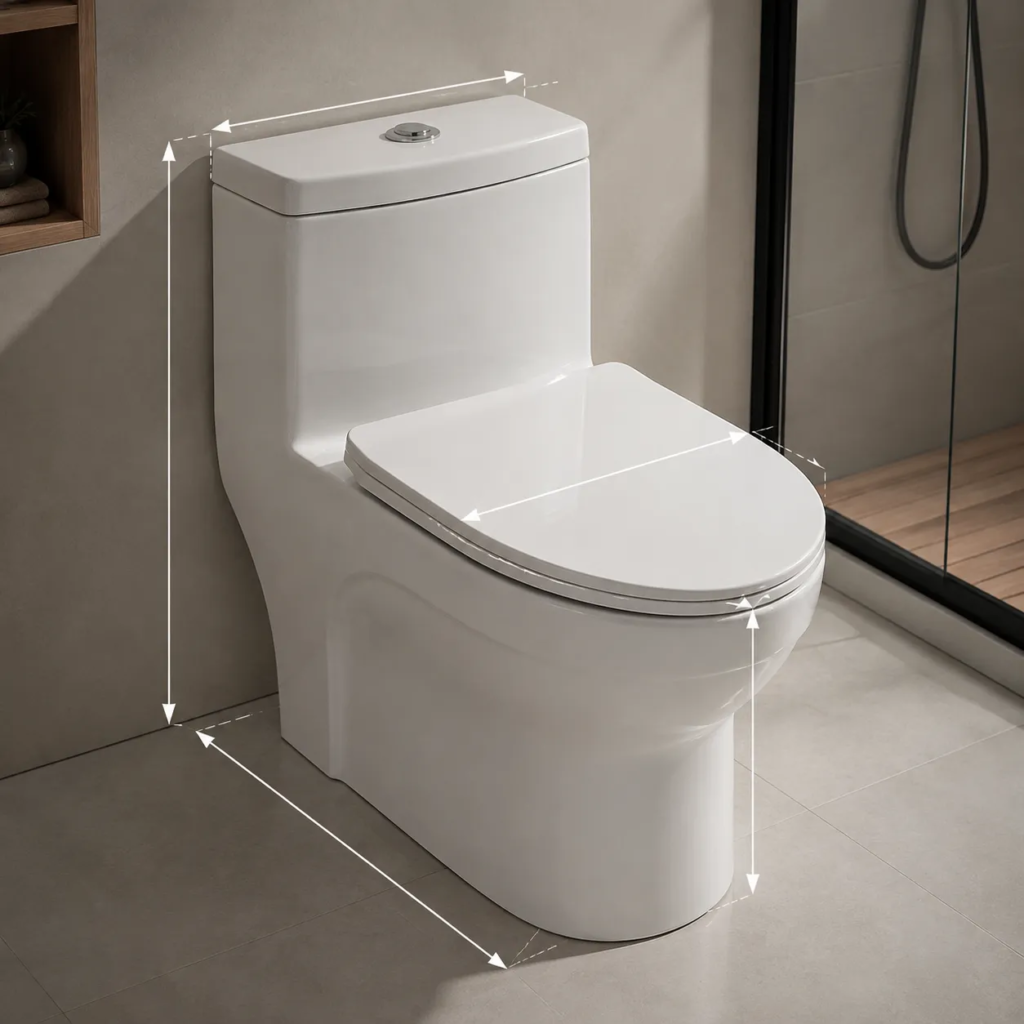

Standard Dimensions of One-Piece Toilet Seats
Selecting the correct one piece toilet seat dimensions ensures a precise fit, optimal comfort, and clean visual alignment. While one-piece toilets integrate the tank and bowl into a single seamless unit, seat dimensions follow standardized manufacturing categories defined by bowl shape.
| Toilet Seat Type | Average Length | Average Width | Standard Bolt Hole Spacing |
|---|---|---|---|
| Elongated | 18.5 in (47 cm) | 14 – 14.5 in (35.5 – 37 cm) | 5.5 in (14 cm) |
| Round | 16.5 in (42 cm) | 14 – 14.5 in (35.5 – 37 cm) | 5.5 in (14 cm) |
| Compact Elongated | 17.5 – 18 in (44.5 – 45.7 cm) | 14 – 14.5 in (35.5 – 37 cm) | 5.5 in (14 cm) |

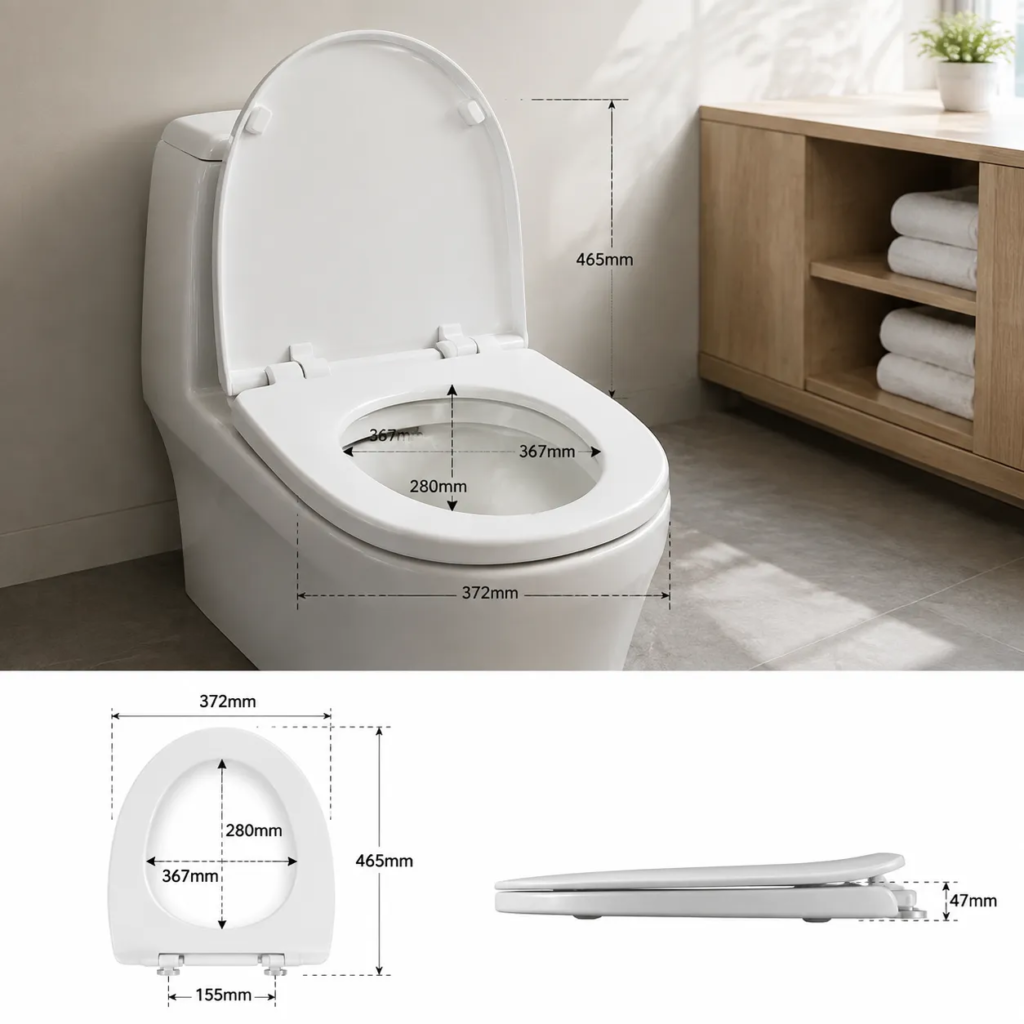

Elongated Toilet Seat Dimensions
Standard elongated toilet seat size specifications feature a total length of 18.5 inches (47 cm) measured from the center of the mounting bolt holes to the front edge of the bowl.
- Target Bowl Length: 18.5 inches
- Seat Width: 14 to 14.5 inches
- Primary Application: Primary bathrooms and high-use residential spaces requiring maximum sitting support and ergonomic comfort.
Round Toilet Seat Dimensions
Round toilet seats feature a compact profile designed for smaller bath layouts, powder rooms, and space-restricted floor plans.
- Target Bowl Length: 16.5 inches (42 cm) from mounting bolt center to front rim
- Seat Width: 14 to 14.5 inches
- Key Feature: Maintains standard bolt hole spacing of 5.5 inches while reducing total forward projection by 2 inches compared to elongated models.
Compact Elongated Seat Dimensions
Compact elongated seats provide a hybrid solution, delivering the contoured comfort of an elongated shape within a scaled-down outer footprint.
- Target Bowl Length: 17.5 to 18 inches (44.5 to 45.7 cm)
- Design Advantage: Offers extended thigh support without obstructing bathroom clearance paths.
- Compatibility: Engineered specifically for modern space-saving one-piece toilet fixtures.
Toilet Seat Shapes for One-Piece Toilets
Matching your replacement lid to the correct bowl contour is crucial when evaluating one piece toilet seat dimensions. Because one-piece units integrate the tank and bowl into a continuous mold, the shape of the bowl directly dictates which seat styles fit seamlessly.
Round vs. Elongated Toilet Seats
The vast majority of residential setups use either round or elongated shapes. Measuring from the mounting holes to the front edge determines which option you need:
- Round Seats: Measure approximately 16.5 inches (42 cm) in length. These are ideal for tight spaces and smaller powder rooms.
- Elongated Seats: Measure around 18.5 inches (47 cm) in length. Choosing an elongated toilet seat size provides added seating area and better thigh support for daily comfort.
| Seat Style | Typical Length | Primary Advantage |
|---|---|---|
| Round | ~16.5 inches | Compact footprint for small bathrooms |
| Elongated | ~18.5 inches | Superior seating comfort and ergonomics |
Square and D-Shaped One-Piece Seats
Contemporary one-piece designs often feature modern profiles that move beyond traditional oval shapes:
- D-Shaped Seats: Feature a flat rear edge near the tank that curves into a smooth, rounded front. You must double-check the bolt hole spacing and total width before purchasing replacements.
- Square Seats: Utilize flat sides and distinct corners. Because square seats lack a universal industry standard, we always recommend verifying the precise length and width specs from the original manufacturer.
Comfort Height and ADA Dimension Standards
Overall height impacts accessibility just as much as length and width:
- Standard Height: Measures 14 to 15 inches from the floor to the top of the bowl rim.
- Comfort Height (ADA Compliant): Measures 17 to 19 inches from the floor to the top of the seat, making sitting down and standing up much easier.
- Seat Thickness: Adding a thicker or specialized seat can help a standard bowl approximate ADA standards, provided the mounting dimensions match your fixture's original footprint.
How to Measure for a One-Piece Toilet Seat Replacement
Getting the exact one piece toilet seat dimensions is critical before ordering a replacement. One-piece toilets often feature unique mold contours and tight clearance near the rear tank, making accurate baseline measurements essential for a flush fit. Grab a tape measure and follow these three steps.
Measuring Bolt Hole Center Distance
The mounting bolt distance is the space between the centers of the two attachment holes at the rear of the bowl rim. Standard bolt hole spacing in North America is typically 5.5 inches (140 mm), though certain imported or custom one-piece models range from 5 to 6.5 inches.
- Hook the tape measure at the center of the left mounting hole.
- Stretch it straight across to the center of the right mounting hole.
- Record the exact center-to-center distance to ensure hinge compatibility.

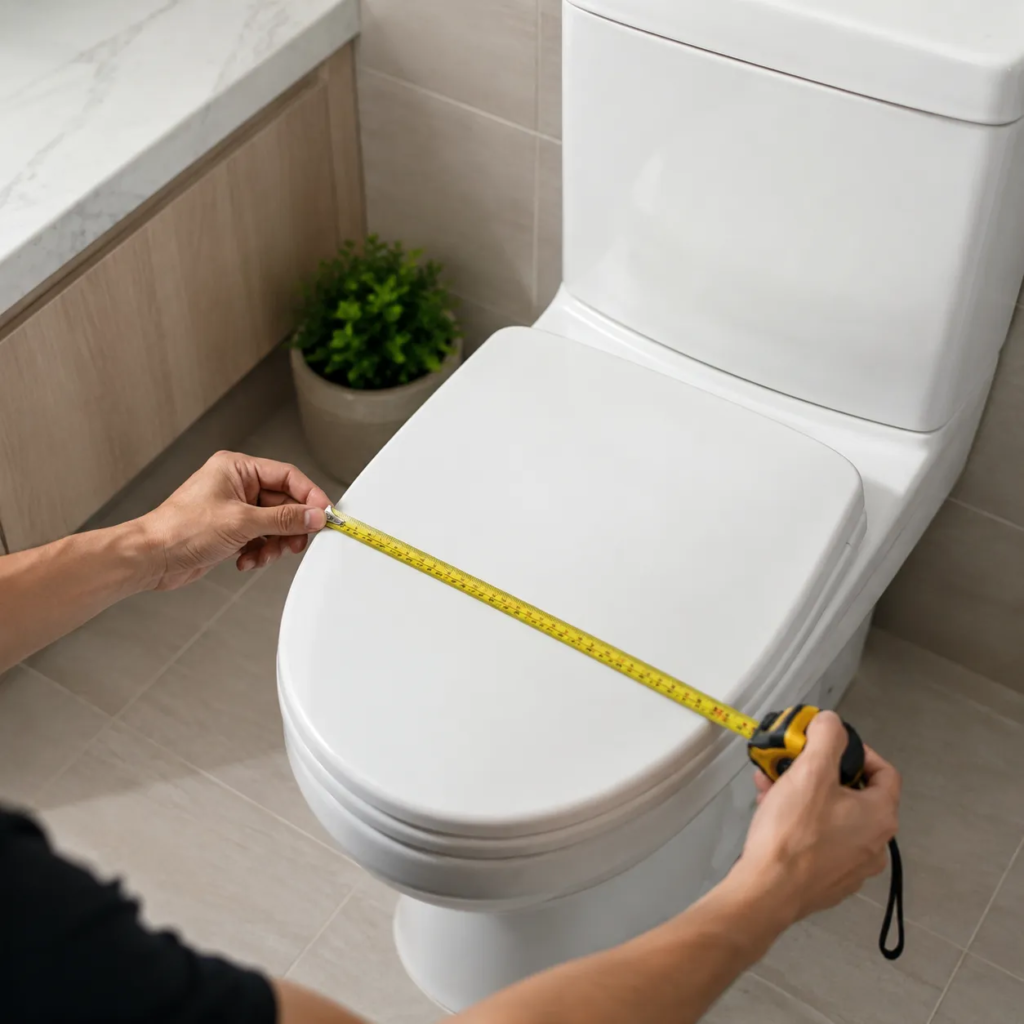

Measuring Maximum Toilet Seat Width
To keep the replacement seat from overhanging or leaving the bowl edge exposed, measure across the widest outer point of the porcelain rim.
- Lay the tape measure flat across the outer edges of the bowl at its widest point.
- Keep the measurement line completely perpendicular to the length of the bowl.
- Most standard one-piece models measure between 14 and 14.5 inches (35.5 to 37 cm) in width.
Measuring Length from Mounting Bolts to Front Edge
Measuring from the center line of the bolts to the front outer lip determines your elongated toilet seat size versus a round profile.
- Place the end of the tape measure directly on the imaginary center line between the two bolt holes.
- Pull the tape straight down the middle to the outside front edge of the bowl rim.
- Round Seat Profile: Measures approximately 16.5 inches (42 cm).
- Elongated Seat Profile: Measures approximately 18.5 inches (47 cm).
| Measurement Point | Reference Method | Typical Dimension Range |
|---|---|---|
| Bolt Hole Spacing | Center of left hole to center of right hole | 5.5 in / 140 mm |
| Bowl Width | Across the widest outer rim points | 14.0 in – 14.5 in / 35.5 cm – 37 cm |
| Bowl Length | From bolt center line to outer front rim edge | 16.5 in (Round) / 18.5 in (Elongated) |
Key Dimension Factors Specific to One-Piece Toilets
Replacing a seat on a seamless fixture requires precise attention to one piece toilet seat dimensions. Because the tank and bowl are fused into a single ceramic mold, tight clearance angles and hidden mounting points introduce specific fitment constraints you must verify before purchasing.
Tank-to-Bowl Clearance and Lid Depth
One-piece toilets often feature a curved or sloped ceramic transition where the tank meets the bowl. This architectural slope directly impacts seat hinge fitment and lid swing angle.
- Flat Mounting Space: Ensure there is at least 1.5 to 2 inches of flat ceramic space between the center of the hinge holes and the base of the tank.
- Lid Opening Clearance: Thicker seats or specialized lid designs need sufficient clearance so the seat cover remains upright without falling forward.
Top-Mounting Bolt Hole Diameter and Spacing
Standard hardware requires reaching underneath the toilet rim, but one-piece designs rely on top-fixing expansion hardware inserted directly from above.
| Specification Factor | Standard Measurement | Dimension Requirement |
|---|---|---|
| Bolt Hole Spacing | Center-to-center distance | 5.5 inches (140 mm) |
| Hole Diameter | Top-mount expansion hole | 3/8" to 5/8" (10 mm - 16 mm) |
| Hardware Fit | Expansion sleeve depth | 1.5 inches to 2 inches |
Accurate bolt hole spacing ensures your new seat aligns cleanly with the front edge of the bowl without overhanging or sitting crooked.
Concealed Trapway Fitting Dimensions
Skirted sides create a smooth, easy-to-clean exterior, but they block access to the underside of the mounting holes.
- Top-Mount Compatibility: Always choose replacement seats engineered for top-mount installation to avoid pulling the toilet off the floor.
- Deck Thickness: Measure the ceramic deck depth around the anchor holes to ensure the top-mount expanding bolts expand and grip securely beneath the surface.
- Side Alignment: Confirm the seat base width matches the outer bowl contour so the skirted sides remain flush.
Choosing the Best Replacement Seat for Your One-Piece Toilet
Upgrading your toilet seat requires balancing material thickness, hinge mechanics, and exact fixture measurements. One-piece toilets feature sleek, integrated curves and often require top-mounting hardware, making precise dimensions critical for a flush, professional finish.
Comparing Wood, Plastic, and Bidet Seat Dimensions
Different seat materials directly impact overall height, lid profile, and seat ring clearance. Standard one piece toilet seat dimensions vary depending on whether you choose lightweight plastic, heavy-duty molded wood, or an electronic bidet unit.
| Seat Material / Type | Standard Length | Standard Width | Profile Thickness | Key Dimension Factor |
|---|---|---|---|---|
| Molded Wood | 16.5" (Round) / 18.5" (Elongated) | 14.0" – 14.5" | 1.0" – 1.25" | Rigid build; demands precise bolt hole spacing |
| Polypropylene Plastic | 16.5" (Round) / 18.5" (Elongated) | 14.0" – 14.2" | 0.75" – 1.0" | Slim profile; exact match for standard elongated toilet seat size options |
| Electronic Bidet | 19.0" – 20.5" | 14.5" – 15.0" | 2.0" – 5.5" (rear housing) | Requires 1.5" to 2.0" of flat clearance in front of the tank |
Measurement Note: Electronic bidet seats feature elevated rear housings. Always verify the slope of your one-piece tank before upgrading so the unit rests fully flat against the bowl rim.
Evaluating Soft-Close and Quick-Release Hinges
Selecting a quality soft close seat replacement eliminates slamming and protects the porcelain rim from chips. Because modern one-piece models feature skirted trapways with restricted access to the underside of the bowl, hardware compatibility is paramount.
- Top-Mount Hardware: Essential for concealed trapway designs. Expanding rubber anchors drop directly into the top of the bowl holes and tighten securely from above.
- Standard Mounting Bolt Distance: Most North American residential bowls utilize a center-to-center mounting bolt distance of 5.5 inches (140 mm).
- Quick-Release Pins: Dual push-button hinge assemblies allow you to lift the entire seat off the posts instantly for thorough cleaning.
Matching Brand Specifications for Seamless Fit
While universal replacement seats fit standard bowls, custom one-piece designs often feature French-curve tanks or unique rim contours. Matching brand-specific dimensional profiles prevents unsightly overhang and unwanted seat movement.
- Measure Tank Clearance: Check the distance from the center of the bolt holes back to the face of the toilet tank. Aim for a minimum of 1.5 inches of flat deck space.
- Align Outer Curves: Verify that the front and side radii of the replacement seat line up with the porcelain rim to avoid exposed edges.
- Check Hinge Alignment: Ensure the replacement mounting posts align perfectly over your fixture's anchor points for a rigid, slip-free installation.
